AMD64 overclocking guide

Techniques, tips, and advice for the performance PC enthusiast on overclocking.

Moderator: The Mod Squad

User avatar
tedybear
Black Belt 5th Degree
Black Belt 5th Degree
Posts: 7251
Joined: Sat Feb 14, 2004 12:55 am
Location: Fulton, New York, on Earth

Post by tedybear »

If memory serves, we both have the same mobo. (I wanted to ask if you got the audio figured out yet?)

But using the CoreCenter program supplied by MSI for the Neo4 board, It will allow you up to an 11% overclock via that program. (anyone know a better one? I'll give it a whirl)

Best I've got currently with just the FSB adjust @ 11% is:

222 MHz @ 9.0 for the multi.

She hovers nicely around the 2gig mark (1998-2001 with very slight variations)


It's also dependent on your memory. If you are running stock PC3200 as I am? Expect a normal of 200 MHz. If you are using PC2700? Your normal I believe would be 166 MHz.

S-
ThEvil0nE
Black Belt 3rd Degree
Black Belt 3rd Degree
Posts: 3937
Joined: Mon May 06, 2002 12:01 am
Location: New York
Contact:

Post by ThEvil0nE »

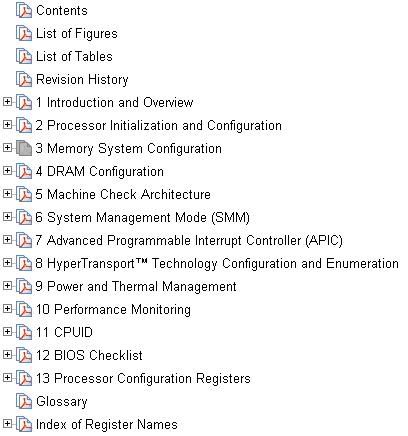

Here's the April 2005 white paper from AMD titled BIOS and Kernel Developer's Guide for AMD Athlon 64 and AMD Opteron Processors
http://www.amd.com/us-en/assets/content ... /26094.PDF


Goodluck!
[img]http://tinyurl.com/2wenkq/.gif[/img] [img]http://tinyurl.com/3dwljt/0.png[/img]
Peanya
Black Belt 5th Degree
Black Belt 5th Degree
Posts: 6055
Joined: Fri Feb 07, 2003 7:43 pm

Post by Peanya »

That one doesn't include the updates for the revision E processors in the memory section. It still shows DDR333 max with all 4 slots filled at 2T.
ThEvil0nE
Black Belt 3rd Degree
Black Belt 3rd Degree
Posts: 3937
Joined: Mon May 06, 2002 12:01 am
Location: New York
Contact:

Post by ThEvil0nE »

Here's a developer's guide on Code Optimization Guide that also deserves a good reading


http://developer.amd.com/htmlhelp/optim ... wwhelp.htm
[img]http://tinyurl.com/2wenkq/.gif[/img] [img]http://tinyurl.com/3dwljt/0.png[/img]
^OneOneSe7en-
Pilgrim
Pilgrim
Posts: 2
Joined: Wed Jun 08, 2005 8:52 am

Post by ^OneOneSe7en- »

I have a MSI K8T Neo FIS2R and there is no way to change the multiplyers on anything in the BIOS (version 1.3 so it says) It has dynamic overclocking where it does it automatically.. but anything over 2255 Windows crashes (stock at 2200) I tried increasing the memory voltage but it still doesnt work.
Sabrewings
Mobo-fu Master
Mobo-fu Master
Posts: 18948
Joined: Thu Jan 15, 2004 3:04 am
Location: Barksdale AFB, LA
Contact:

Post by Sabrewings »

^OneOneSe7en- wrote:I have a MSI K8T Neo FIS2R and there is no way to change the multiplyers on anything in the BIOS (version 1.3 so it says) It has dynamic overclocking where it does it automatically.. but anything over 2255 Windows crashes (stock at 2200) I tried increasing the memory voltage but it still doesnt work.
I gave you your own thread here:

viewtopic.php?t=74250

Continue discussion there. Stickies are for immediate discussion of that topic, not help requests. :wink:
[img]http://img.photobucket.com/albums/v317/sabrewings/random%20stuff/mobosig52.jpg[/img][img]http://img.photobucket.com/albums/v317/sabrewings/fft.gif[/img]
[url=http://recordingindustryvspeople.blogspot.com/][b]RIAA vs The People[/b][/url]
zachig
Initiate
Initiate
Posts: 88
Joined: Wed Jun 29, 2005 5:20 am

Post by zachig »

This is a VERY INTERESTING and USEFUL guide. Thanks guys. :D

I'll definitely use it when I'll find the time to start overclocking my X2 3800+ new CPU. :wink:
User avatar
Ripshod
Black Belt
Black Belt
Posts: 708
Joined: Wed Aug 13, 2003 2:57 pm
Location: Yorkshire, UK
Contact:

Post by Ripshod »

Excellent post, helped me to the land of 2.3GHz (230.4 x 10) on my Athlon 64 (939) on a lowly Abit UL8. 15% and stable and cool. I might invest is some H2O cos I know there's more.
CALL &BD19 (If you need to ask you don't need to know)
[url=http://valid.canardpc.com/2639760][img]http://valid.canardpc.com/cache/banner/2639760.png[/img][/url]
